Name: SOL SERIES TWO: DECO NON-ADJUSTABLE BATH JETS
Brand: CMP
SKU: 24100-000-999

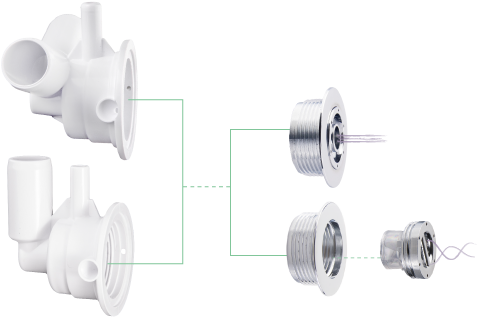

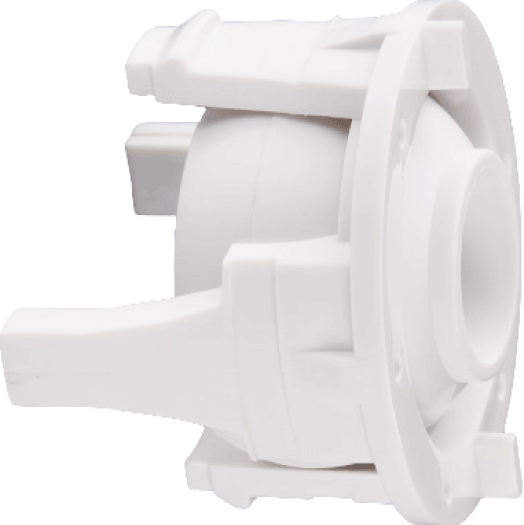

SOL SERIES TWO: DECO NON-ADJUSTABLE BATH JETS

Numéro de pièce CMP	Description complète

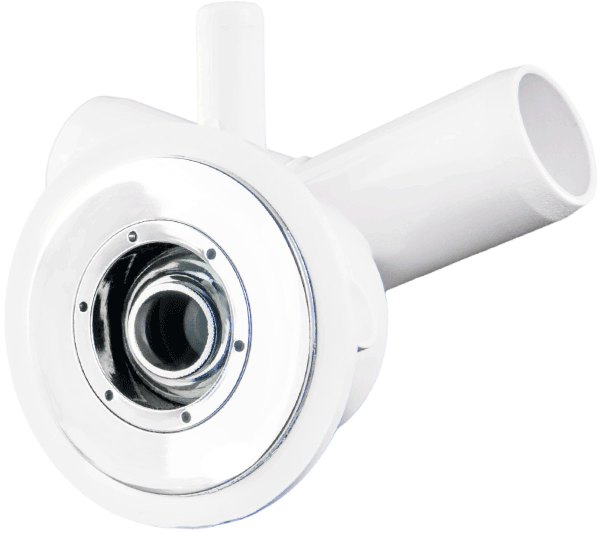

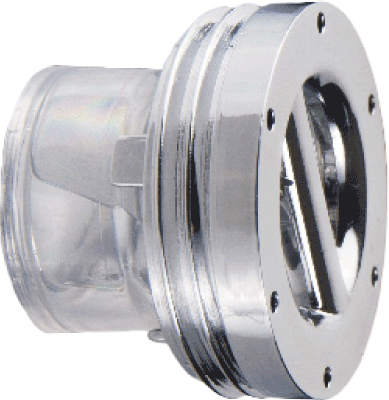

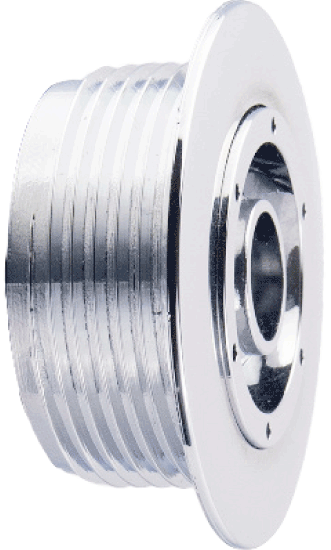

24100-000-600	SERIES TWO DECO DIRECTIONAL NOZZLE & WALL FITTING ASSEMBLY, WHITE
24100-012-600	SERIES TWO DECO DIRECTIONAL NOZZLE & WALL FITTING ASSEMBLY, CHROME

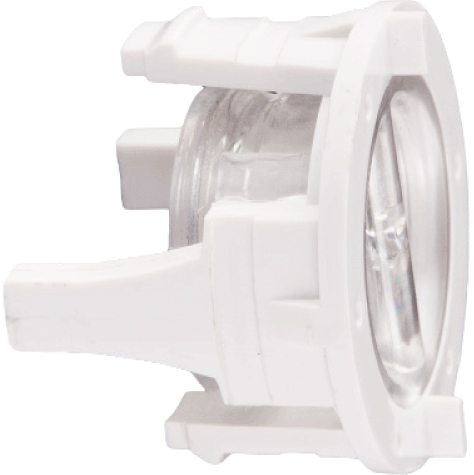

24100-000-700	SERIES TWO DECO ROTO NOZZLE, WHITE
24100-002-700	SERIES TWO DECO ROTO NOZZLE, CHROME

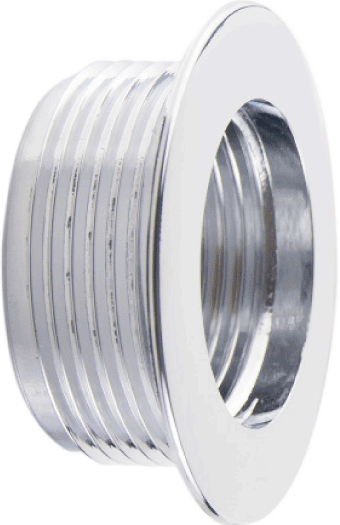

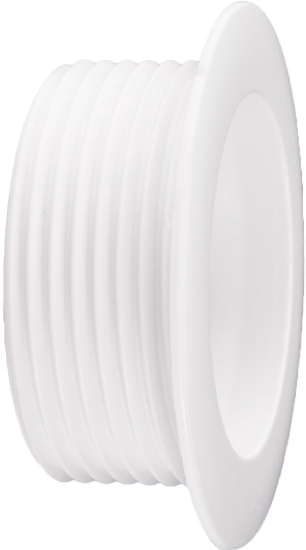

24100-000-603	SERIES TWO DECO WALL FITTING, WHITE
24100-002-603	SERIES TWO DECO WALL FITTING, CHROME

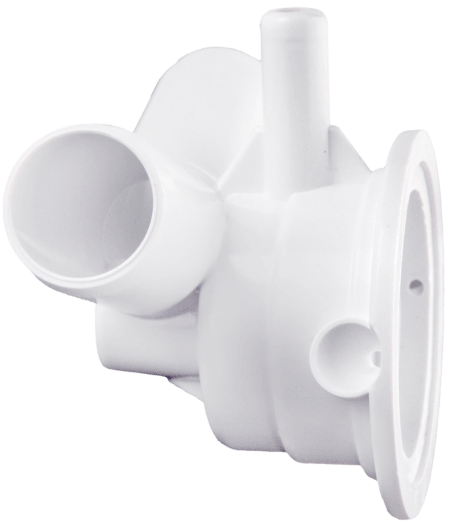

24001-000-600	SERIES TWO DECO 26MM V-BODY (NON FLOW-ADJUSTABLE)
24101-000-600	SERIES TWO DECO 1" V-BODY (NON FLOW-ADJUSTABLE)

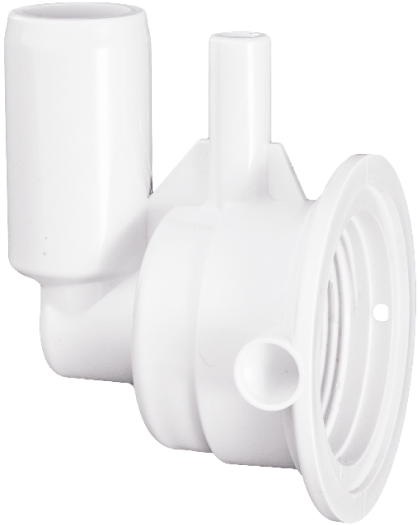

24101-000-620	SERIES TWO DECO 1" L-BODY (NON FLOW-ADJUSTABLE)
24001-000-620	SERIES TWO DECO 26MM L-BODY (NON FLOW-ADJUSTABLE)
24100-000-999	SERIES TWO WALL FITTING TOOL

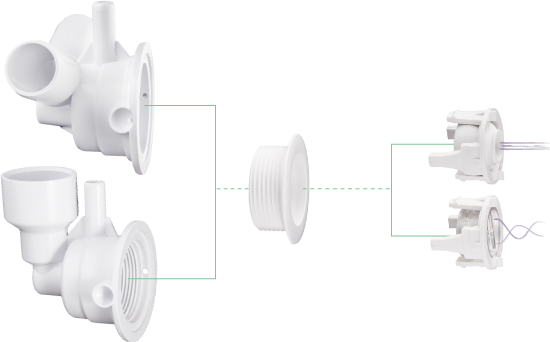

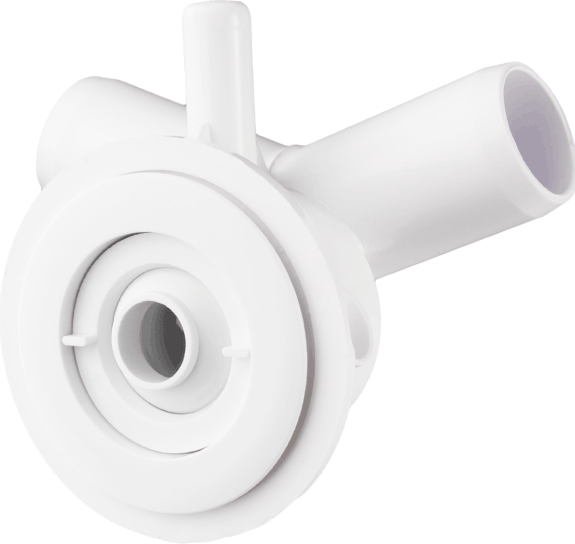

SOL SERIES TWO DECO: ADJUSTABLE BATH JETS

Numéro de pièce CMP	Description complète
24100-000-900	SERIES TWO DECO ADJUSTABLE DIRECTIONAL NOZZLE INTERNAL, WHITE
24100-000-910	SERIES TWO DECO ADJUSTABLE ROTO NOZZLE INTERNAL, WHITE
24100-000-090	SERIES TWO DECO ADJUSTABLE JET WALL FIT TING

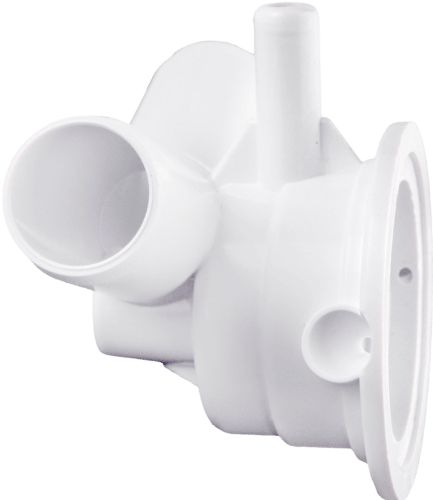

24000-000-200	SERIES TWO 26MM ADJUSTABLE V-BODY
24100-000-200	SERIES TWO 1" ADJUSTABLE V-BODY

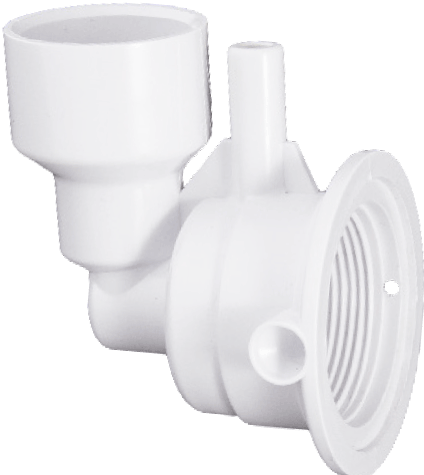

24100-000-220	SERIES TWO 1" ADJUSTABLE L-BODY
24000-000-220	SERIES TWO 26MM ADJUSTABLE L-BODY
24100-000-999	SERIES TWO WALL FIT TING TOOL

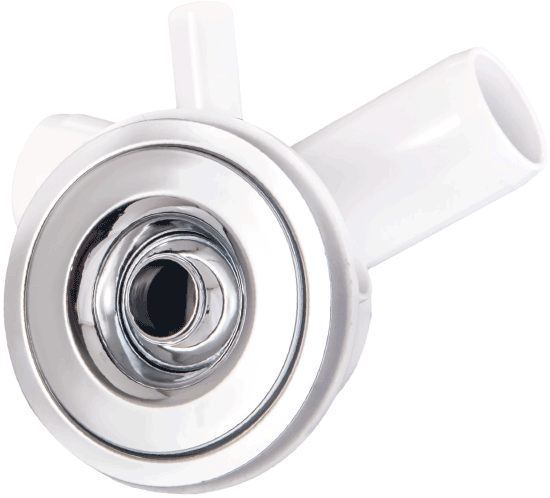

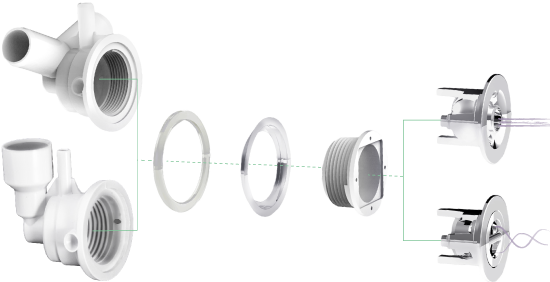

SOL SERIES TWO: SMOOTH BATH JETS

Numéro de pièce CMP	Description complète

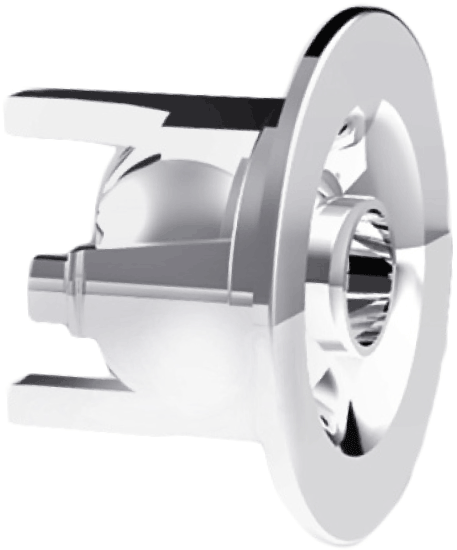

24100-500-000	SERIES TWO SMOOTH DIRECTIONAL JET INTERNAL

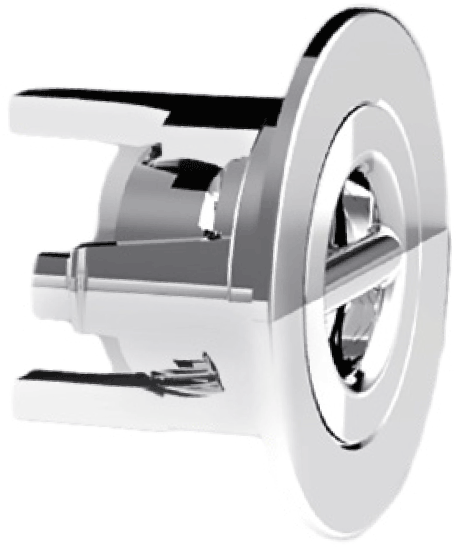

24100-500-100	SERIES TWO SMOOTH ROTO JET INTERNAL

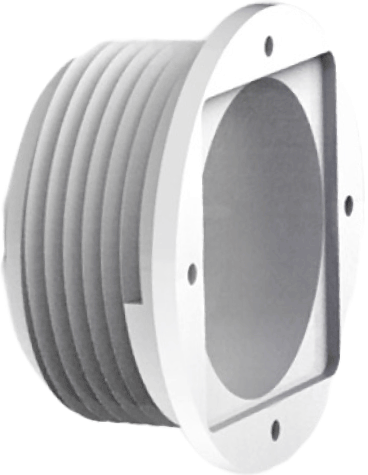

24100-500-040	SERIES TWO SMOOTH WALL FITTING

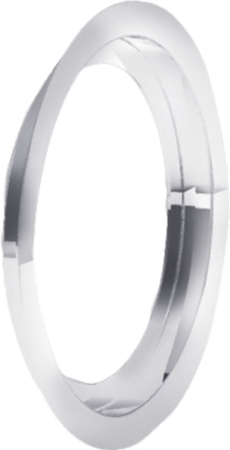

24100-500-030	SERIES TWO SMOOTH WALL FITTING ESCUTCHEON (STAINLESS STEEL RING)

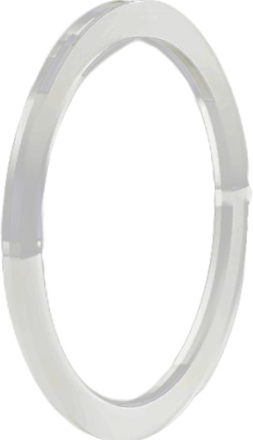

24100-500-070	SERIES TWO WALL FITTING GASKET

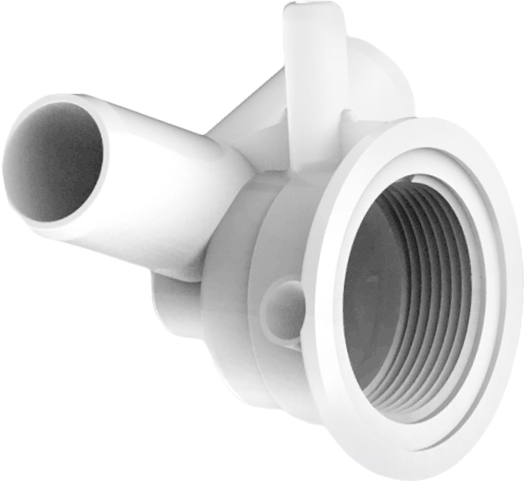

24000-000-200	SERIES TWO 26MM ADJUSTABLE V-BODY
24000-000-300	SERIES TWO 26MM ADJUSTABLE V-BODY WITH EXTENDED FLANGE
24000-000-305	SERIES TWO 26MM ADJUSTABLE V-BODY W/ EXTENDED FLANGE & CHECK VALVE
24100-000-200	SERIES TWO 1" ADJUSTABLE V-BODY

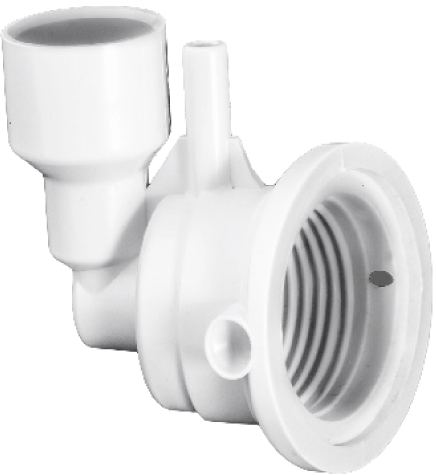

24000-000-220	SERIES TWO 26MM ADJUSTABLE L-BODY
24000-000-320	SERIES TWO 26MM ADJUSTABLE L-BODY WITH EXTENDED FLANGE
24000-000-325	SERIES TWO 26MM ADJUSTABLE L-BODY W/ EXTENDED FLANGE & CHECK VALVE
24100-000-220	SERIES TWO 1" ADJUSTABLE L-BODY
24100-999-999	WALL FITTING TOOL (100-E)

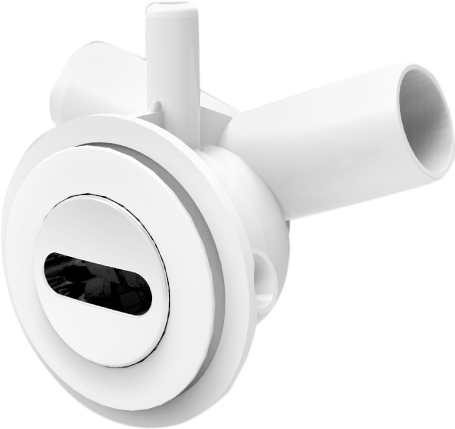

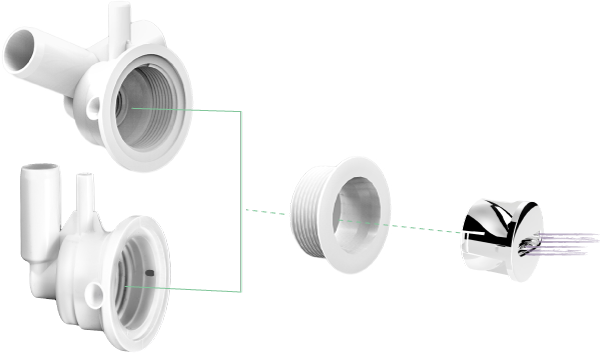

SOL SERIES TWO: SLOTTED BATH JETS

Numéro de pièce CMP	Description complète

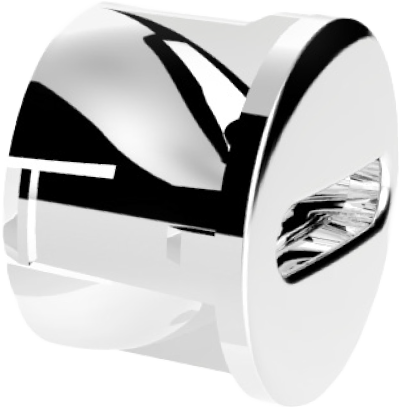

24100-000-094	SERIES TWO SLOTTED JET INTERNAL

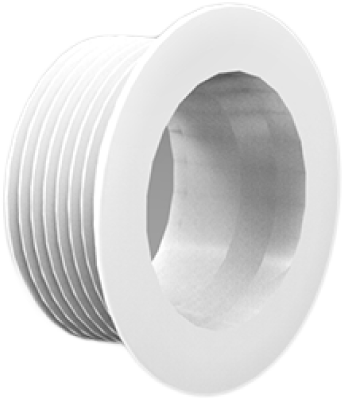

24100-000-090	SERIES TWO SLOTTED WALL FITTING
24100-000-200	SERIES TWO 1" ADJUSTABLE V-BODY

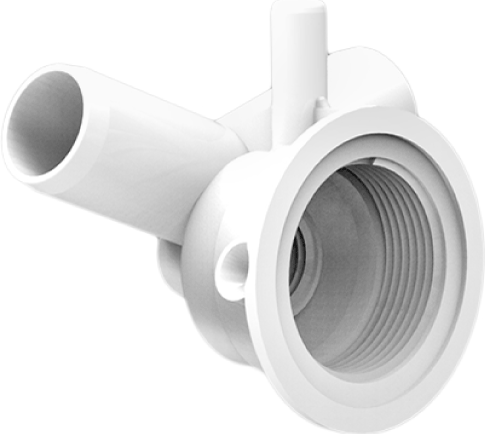

24101-000-700	SERIES TWO SLOTTED 1" NON-ADJUSTABLE V-BODY
24000-000-200	SERIES TWO 26MM ADJUSTABLE V-BODY
24001-000-700	SERIES TWO SLOTTED 26MM NON-ADJUSTABLE V-BODY
24100-000-220	SERIES TWO 1" ADJUSTABLE L-BODY

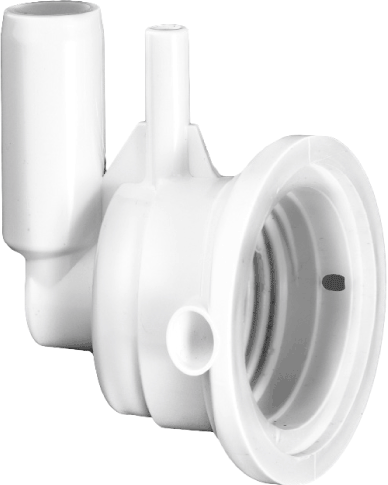

24101-000-720	SERIES TWO SLOTTED 1" NON-ADJUSTABLE L-BODY
24000-000-220	SERIES TWO 26MM ADJUSTABLE L-BODY
24001-000-720	SERIES TWO SLOTTED 26MM NON-ADJUSTABLE L-BODY
24100-000-999	WALL FITTING TOOL

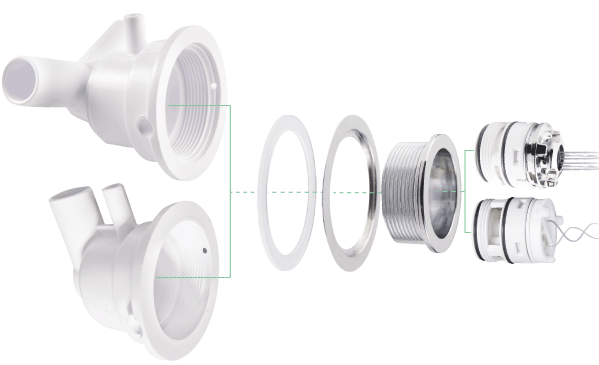

SOL SERIES THREE BATH JETS

Numéro de pièce CMP	Description complète

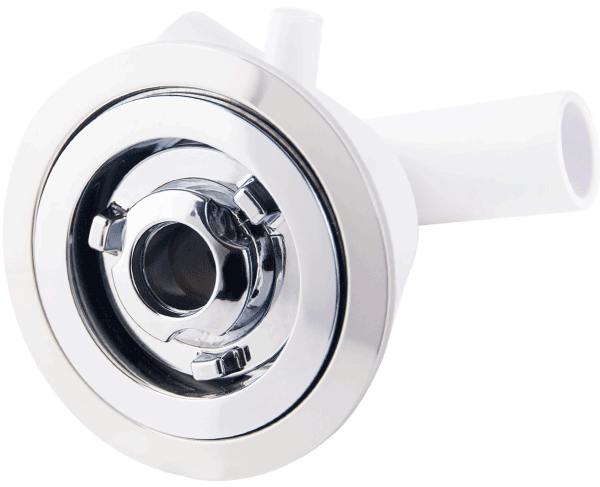

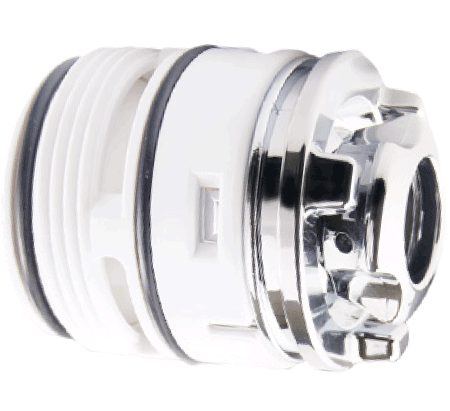

24601-002-000	SERIES THREE DIRECTIONAL & FLOW ADJUSTABLE INTERNAL

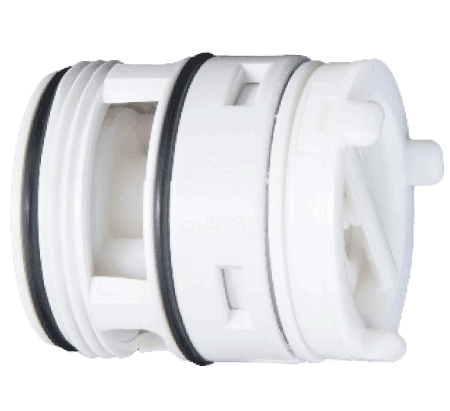

24600-000-200	SERIES THREE ROTATIONAL INTERNAL
24601-002-030	SERIES THREE WALL FITTING/TRIM RING

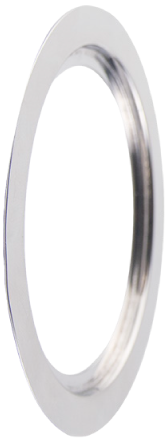

24601-002-040	SERIES THREE FLUSH ESCUTCHEON

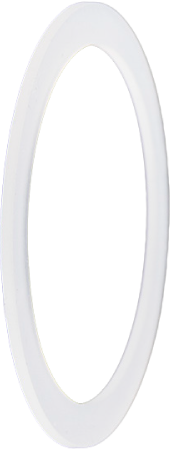

24601-000-001	SERIES THREE GASKET

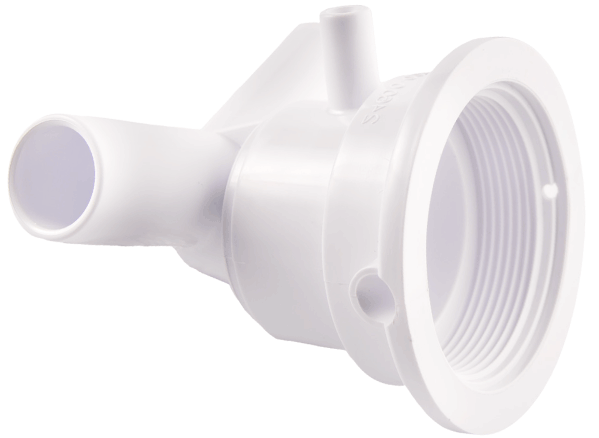

24600-000-010	SERIES THREE "V" JET BODY WITH CHECK VALVE

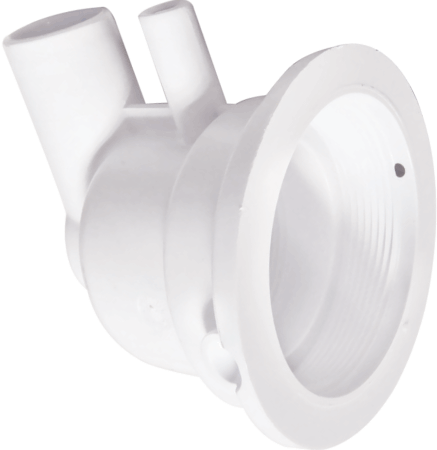

24600-000-020	SERIES THREE "L" JET BODY WITH CHECK VALVE
24601-999-999	JET TOOL FOR WALL FITTING

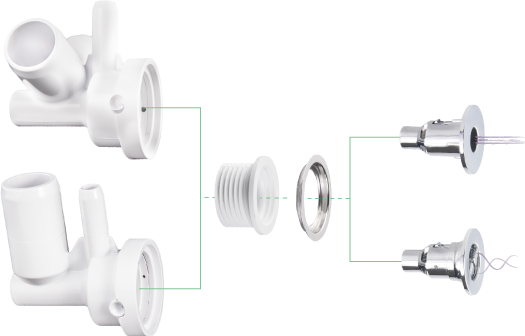

SOL MICRO SERIES BATH JETS

Numéro de pièce CMP	Description complète

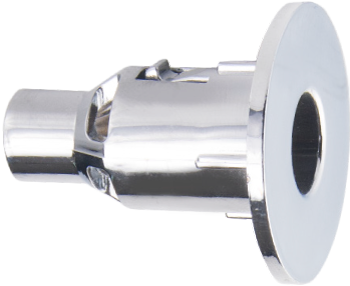

23400-800-100	1.25" MICRO FIXED JET INTERNAL, ADJUSTABLE
23400-800-000	1.25" MICRO FIXED JET INTERNAL, NON-ADJUSTABLE

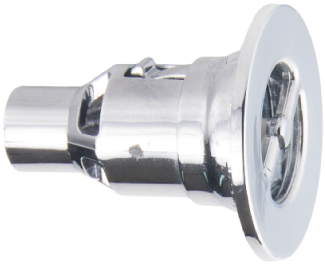

23401-800-100	1.25" MICRO FIXED ROTO JET INTERNAL, ADJUSTABLE
23401-800-000	1.25" MICRO FIXED ROTO JET INTERNAL, NON-ADJUSTABLE

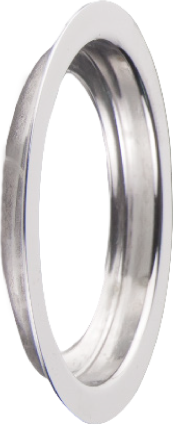

23400-800-010	1.25" MICRO ESCUTCHEON/TRIM RING

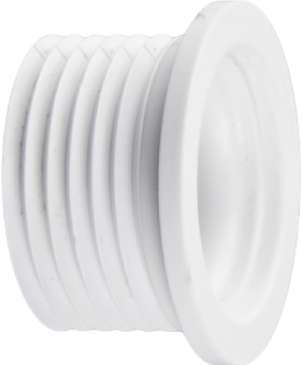

23400-840-040	1.25" MICRO WALL FITTING

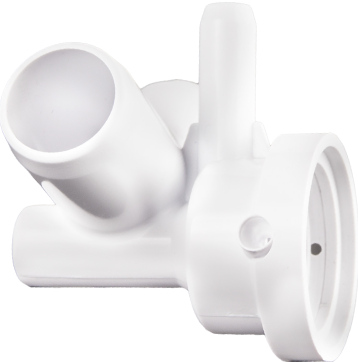

23400-800-030	1.25" MICRO 26MM V-BODY WITH ADAPTER WITH CHECK VALVE

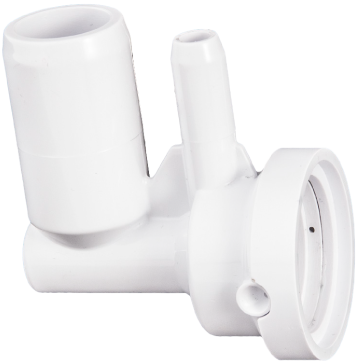

23400-900-080	1.25" MICRO 26MM L-JET BODY WITH ADAPTER WITH CHECK VALVE
23400-950-080	1.25" MICRO 3/4 SOCKET L-BODY WITH ADAPTER WITH CHECK VALVE
23400-999-999	TOOL FOR MICRO WALL FITTING
