Before You Begin

IMPORTANT WARNINGS

Failure to install this equipment in accordance with the installation instructions could void warranty and result in serious injury or death.

Install in accordance with the installation instructions at least 5 feet (1.5 meters) from the wall of the pool.

All permanent electrical connections should be made by a qualified electrician. Follow all applicable electrical codes.

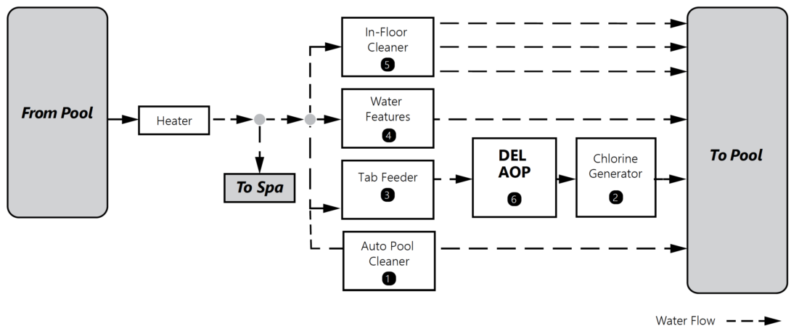

SYSTEM DIAGRAM

NOTE: DEL AOP works under a vacuum. The injector draws the ozone/air-gas mixture from the ozone cells and mixes it into the water leaving behind some undissolved gas bubbles. Because this can affect certain pool system components, care must be taken when installing DEL AOP.

This diagram covers some common plumbing configurations. For other configurations and assistance, contact www.c-m-p.com/support.

1. Pool Cleaners: Always plumb the cleaner T-fitting before DEL AOP to prevent gas from affecting cleaner operation.

2. Chlorine Generator: Always plumb after DEL AOP to prevent the trapped accumulation of hydrogen gas, a safety hazard.

3. Chlorine Tab/Mineral Erosion Feeder: Always plumb DEL AOP after any erosion feeder to avoid gas accumulating in the feeder. If installing as a retrofit and a tab feeder cannot be relocated, an MDV unit is recommended between DEL AOP and the tab feeder.

4. Water Features: Avoid plumbing the DEL AOP into any leg with excessive back pressure such as those going to fountains, restrictive wall fittings, etc.

5. In-Floor Cleaning System: Avoid excess backpressure by installing DEL AOP on a different pool return leg from any In-Floor Cleaning system. This will also prevent gas intrusion and high oxidizer levels in the zone valve and cleaner heads.

SPECIFICATIONS

This unit may be ground or wall-mounted.

Power Requirements:

– 110V/ 240V

– 60 Hz / 50 Hz

– AOP 25: 0.7 Amps, AOP 40: 1.1 Amps

Ambient recommended temperature is 30°F – 120°F (0°C – 50°C).

FLOW RATE CHART

The unit must meet the minimum flow rate to activate the internal flow switch. Below this flow rate, the system will not turn on.

– The NSF Tested max flow is the rate at which a 3-log disinfection rate is achieved to meet the supplemental sanitizer requirements.

– Operation above the NSF Tested max flow the level of undissolved ozone in the system may increase.

– A Mixing De-gas Vessel can be installed after the AOP system to remove excess ozone from the system.
