• SQR™ SYSTEM

    THE NEXT GENERATION OF SPA INSTALLATION

FORWARD THINKING ENGINEERING

SQR applies basic laws of physics to create a superior seal, while addressing the issues created by typical torque compression systems. Components are now available to replace most common spa components with SQR alternatives.

JET BODIES

SUCTIONS

SKIMMERS

WATER FEATURES

CUPHOLDERS

LIGHTING

CONTROLS

GET MORE INFORMATION

Do you need someone at CMP to contact you with more details?

















HOW SQR MAKES A BETTER HOT TUB

SQR is designed to be Simple, Quick and Reliable. The goal of SQR products is to overcome some of the weaknesses associated with traditional nut and gasket part installation.

QUICK: INSTALL COMPONENTS IN A SINGLE STEP

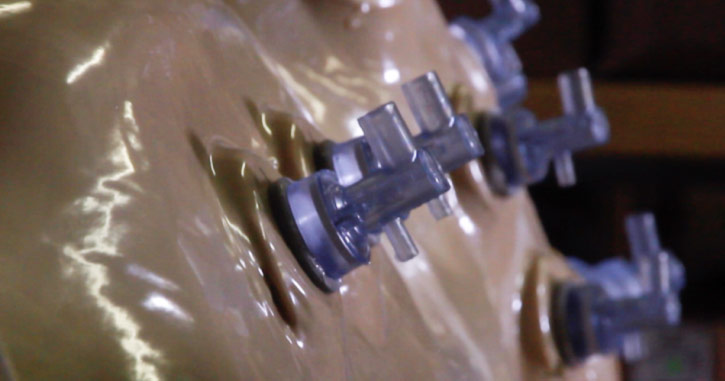

SQR components consist of the part itself and the “grommet” that locks the component in place. This straightforward system speeds up the installation process.

SIMPLE: REDUCED STEPS AND FEWER COMPONENTS

It takes many steps to install a traditional spa part. From drilling and grinding the hole to getting a proper seal with compression nut systems, the process can be very involved. SQR breaks all of this down into much simpler steps.

NO BACKSIDE SURFACE GRINDING

NO NUTS, COMP RINGS OR GASKETS

NO MESSY, UNRELIABLE SEALANTS

RELIABLE: LESS ROOM FOR ERROR & PROVEN IN THE FIELD

The simplicity of the system itself leads to consistency and fewer mistakes. Overall, radial seals like SQR are proven to seal better than compression seals for a hole installation.

SQR IS IN PRODUCTION WITH 30 SPA OEMS & OVER 10 MILLION INSTALLED COMPONENTS

SQR SYSTEM DETAILS

RADIAL SEALS

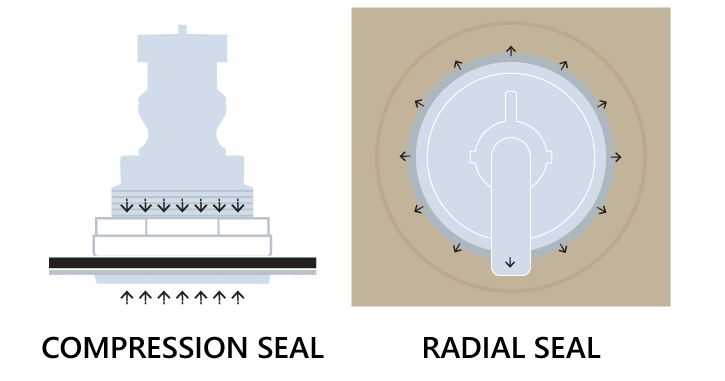

Traditional jet assemblies (consisting of a nut, gasket and comp ring) seal by compression. SQR seals by radial force. This creates a robust seal as the SQR “grommet” makes complete contact with the properly sized hole.

This eliminates the need for calibrated torque tools as required with compression systems. As long as the hole size is consistent the radial seal works the same way every time.

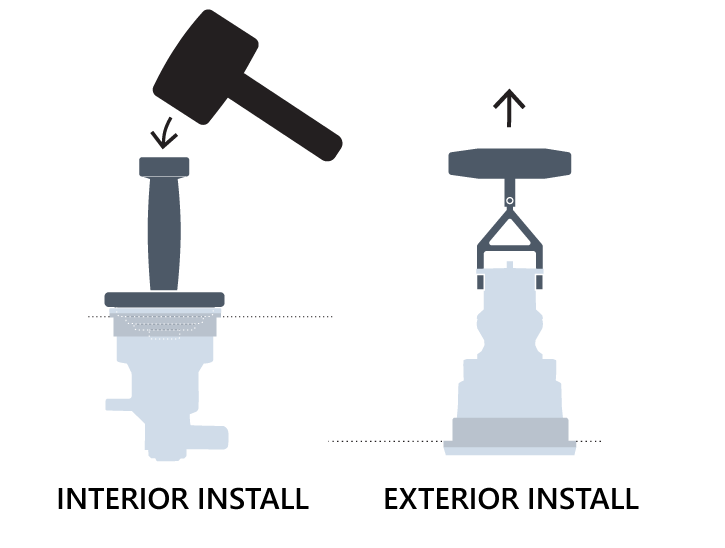

TOOLS THAT REQUIRE NO CALIBRATION

The setter tools can be used for a “pound in” style installation. This method is executed from inside the spa.

The puller tool is used to grab special tabs on an SQR jet body and pull through the hole. This method can be executed from the back side of the spa.

PROVEN AND TESTED

As new technology, SQR has been put through a battery of laboratory and field testing.

PRESSURE TESTING

Passed up to 20PSI with a properly sized hole

CHEMICAL RESISTANCE

Grommets pass tests for all common install environment chemicals

SHELL IMPERFECTIONS

Maintains a seal with uneven thickness, nominal fiberglass protrusions, and FRP air pockets

ENVIRONMENTAL FACTORS

Stands up to wet/dry cycling, low temperatures, water hammer and plumbing weight

COMPRESSION / ROTATION

Radial seals remain effective even if a part is rotated inside the hole and will not leak due to compression “set”
