Electrical
BEFORE YOU BEGIN
Electric shock hazard: Be sure to turn the power OFF and disconnect from the power source before any service work is performed. Failure to do so could result in serious injury or death.

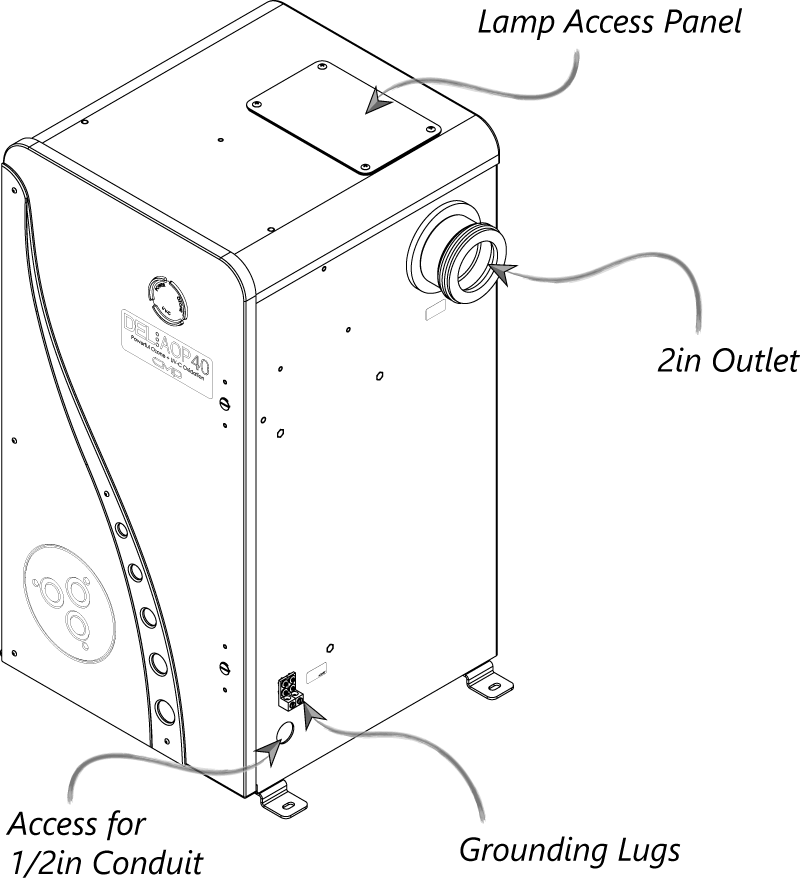

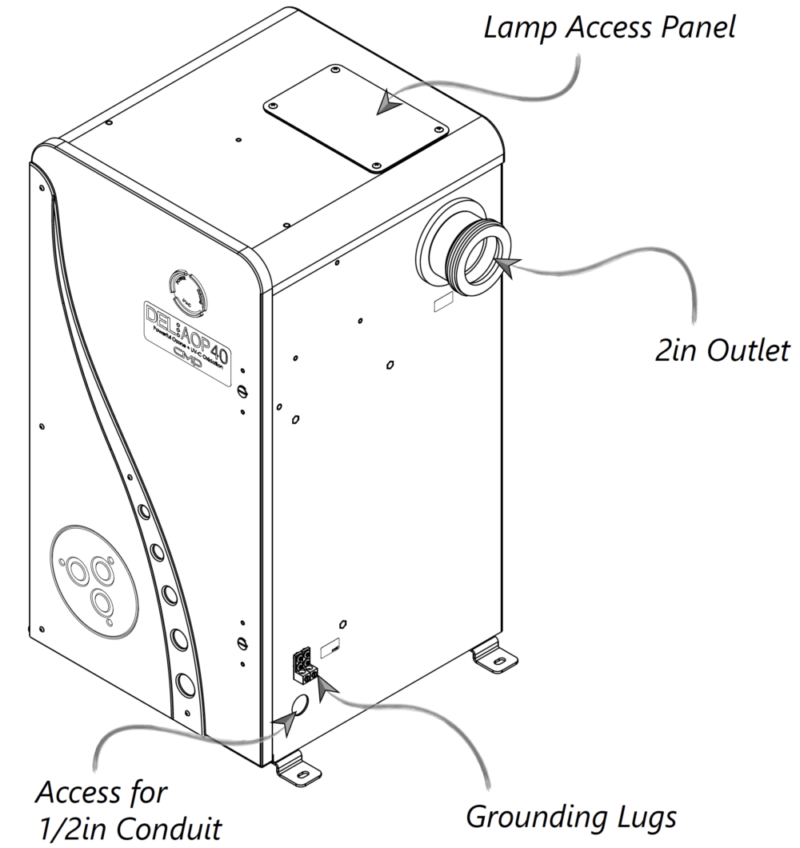

Review the diagram above for general location of electrical components
BONDING LUGS
A pressure wire connector, labeled “bonding lugs” is provided on the outside of the unit to permit connection to a minimum No. 6 AWG (13.3 mm2) solid bonding conductor between this point and any metal equipment, metal enclosures of electrical equipment, metal water pipes, or conduit within 5 feet (1.5 meters) of the unit as needed to comply with local requirements.
CONNECT TO POWER
Connect to the pool timing clock so that the DEL AOP operates simultaneously with the pool pump.
If there is no timing clock or automation system available, the system can be installed on the line voltage along with the variable speed pump.
CONNECT TO GROUNDING LUG
Using a solid copper conductor, connect to the grounding lug on the right side of the DEL AOP to an appropriate earth contact.

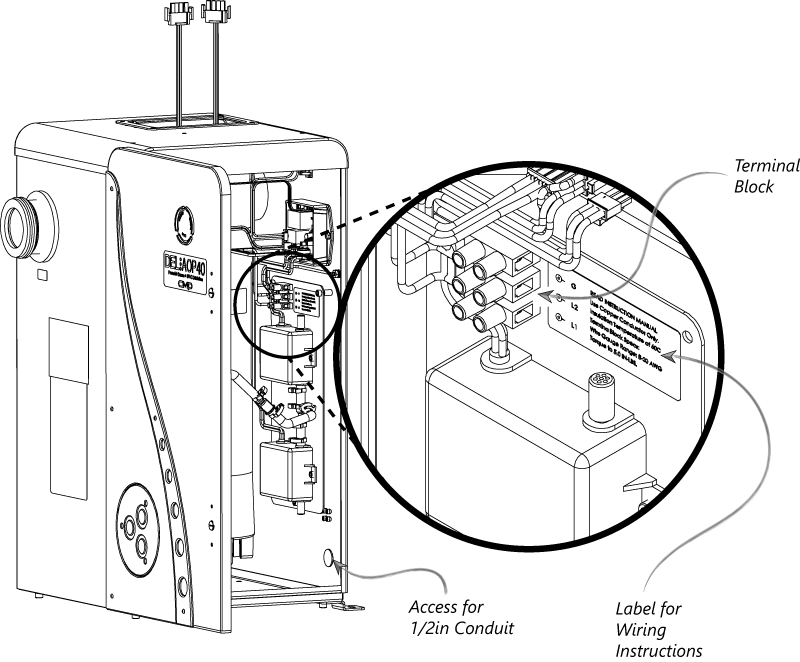

CONNECT TO TERMINAL BLOCK
An access hole is provided for a 1/2” conduit fitting. Install fitting (not provided) and run wire to terminal block inside unit.
Connect Line 1, Line 2 or Neutral, and Ground to the terminal block as indicated by the label on the electrical panel located on the inner right side of enclosure.
