LED Light Pool Setup

Installation Pipe Requirements

The light installs in a standard 1.5″ threaded wall fitting

We recommend 12″ of 1.5″ pipe behind the light for the easiest install

The wire should run through 1″ conduit pipe to control box with sweeps only, no 90° bends

Installation Location

The light must be installed in/or on a wall of the pool or water feature with the top of the lens opening no less than 4 inches (10.16 cm) below normal water level of the pool.

For vertical installations on benches, swim outs and fountains the depth of the light underwater must still be no less than 4 inches.

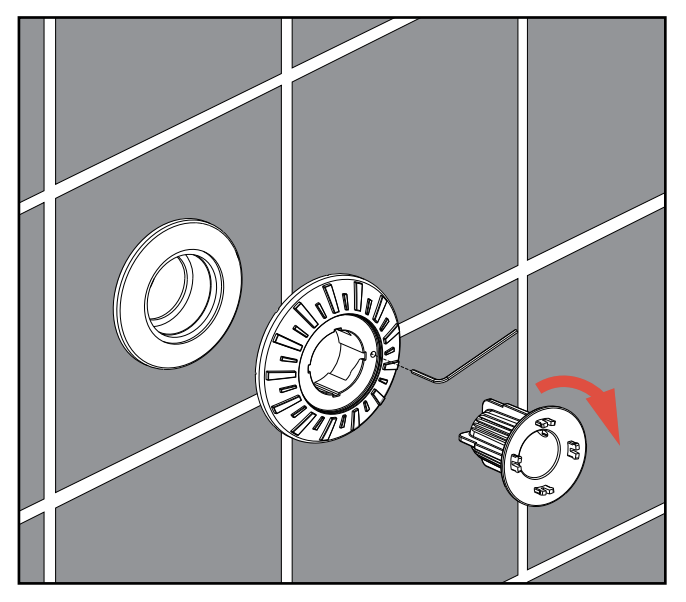

Faceplate & Fitting Assembly

First install the required faceplate or flush gunite fitting into the 1.5″ Threaded Wall Fitting. Use  the included Installation Tool to tightenuntil snug. Do not over tighten.

Tighten the included set screw using a 2mm Allen wrench. (Faceplate fitting only)

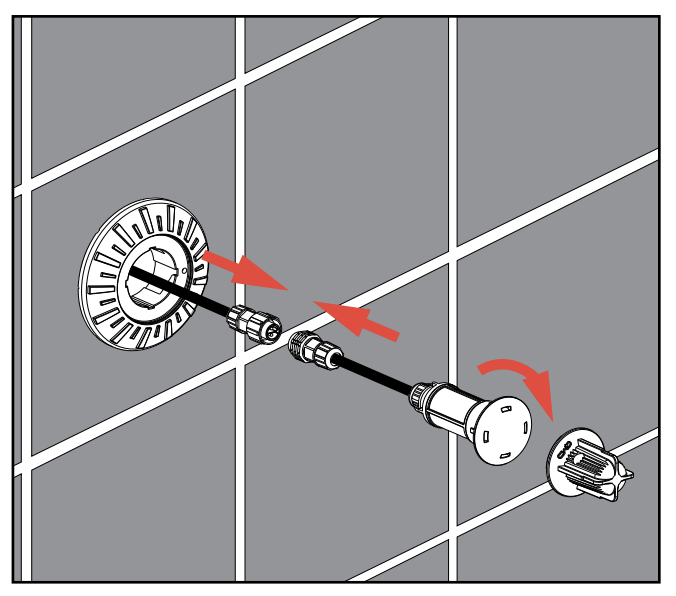

Light Assembly Connection

Connect the male and female electrical cord connections and thread together until snug.

Snap the included Installation Tool into the 4 rectangle holes in the LED Lens.

Gently pushing in the LED Light while twisting the installation tool clockwise until it clicks into place.

Pull Installation Tool straight out to disconnect it from the LED lens.
