WINTERIZATION

power down

Always turn off power to the bubbler transformer and disconnect power to the breaker box before servicing the unit.

Turn off the power to the recirculating pump.

Mark both breakers “out of service.”

NOTE: If the unit will remain under the water level, no other action is required.

OPTIONAL TOOL

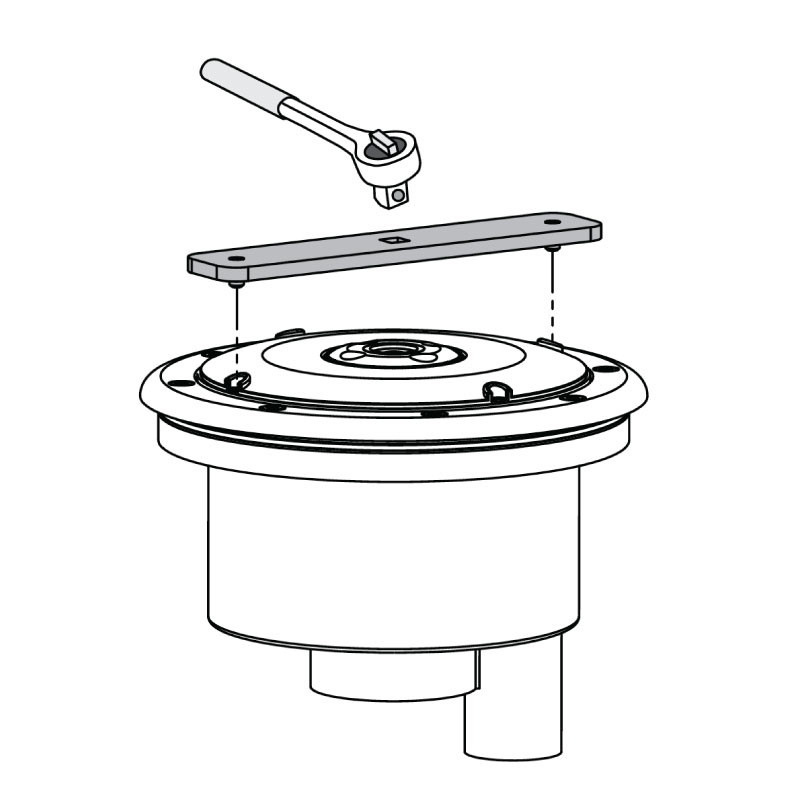

For easy installation and removal of the LED Module, purchase the CMP Bubbler Screw Plate tool (PN 25503-110-999).

REMOVE THE LIGHT

In the case of pools that have the water drained below the Bubbler housing, it’s recommended to flush the water out of the system.

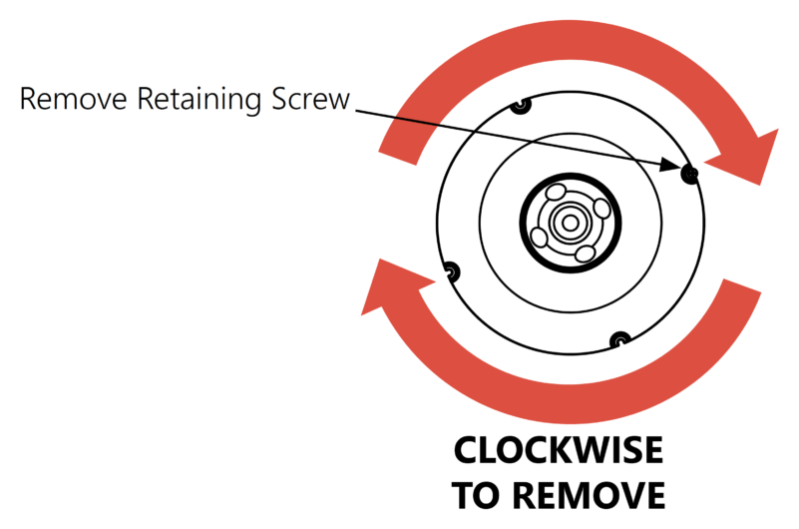

First, remove the LED Module Retaining Screw.

Twist the LED Module CLOCKWISE and remove the LED Module from the housing.

REMOVE WATER

Disconnect the operating pump and use compressed air or comparable equipment to remove all water from the lines.

RECONNECT THE LIGHT

After the water has been removed from the LED Module housing, supply, and return lines, reconnect the LED Module.

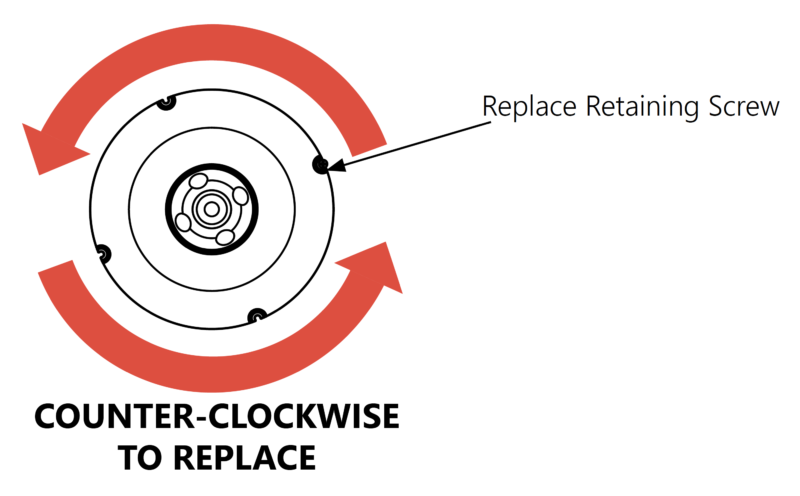

Reinstall the light by inserting it into the housing and turning COUNTER-CLOCKWISE.
