Mounting

Before Mounting

DEL Ozone units are designed for wall mounting.

Remove and discard the foam packaging from inside the enclosure before mounting the unit.

Allow sufficient access for maintenance (2 ft clearance above and 1 ft around the unit) and all plumbing and electrical hookups.

Mounting hardware head must not be smaller than 0.25 inches (6.3 mm) in diameter and the threads of the hardware must be smaller than 0.25 inches (6.3 mm) in diameter.

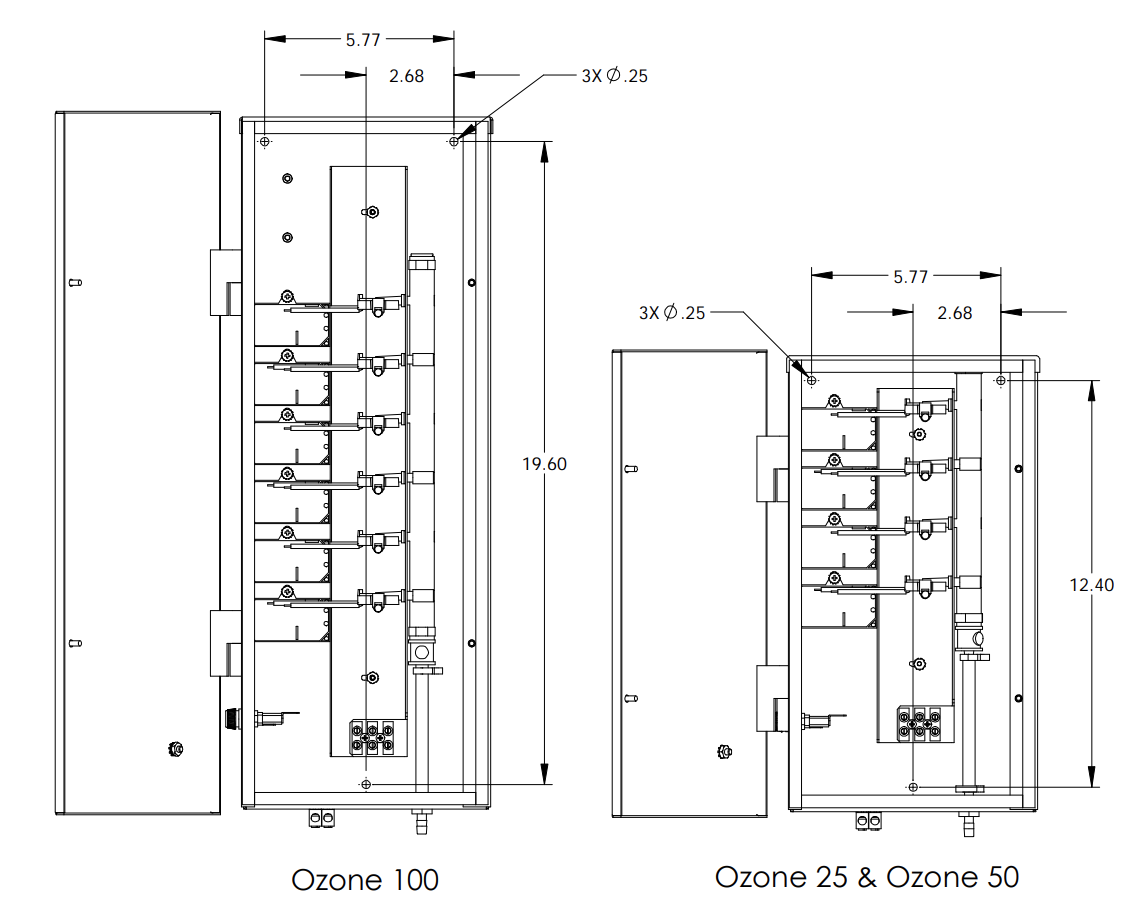

Locate Mounting Holes

Open the Enclosure Door and locate the three mounting holes on the back wall of the Enclosure.

There will be two holes located near the top on the left and right and one located in the center near the bottom.

Attach to Wall

Install screws through the two mounting holes near the top of the enclosure.

Install the last screw through the mounting hole near the bottom of the enclosure.

Mounting hardware must be driven until the head fully contacts the enclosure wall.
