Mounting
Below Water Level
If the UV-C 50 is installed below water level, a Flow Switch Kit (P/N EUV-FS-01) is required to ensure the system does not turn on without adequate flow.
Mounting
The UV-C 50 is designed for floor mounting.
Check valves and ozone generators are a few adder options.
What are you installing?
Install with Bypass Valve
Install with Bypass Valve and Ozone

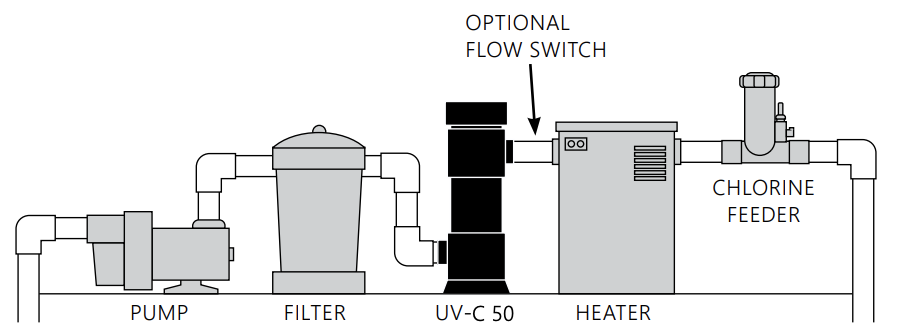

Direct Install
Allow sufficient access for maintenance (3 ft clearance above and 1 ft around the unit) and all plumbing and electrical hookups.
Use the four (4) mounting holes provided in the base of the UV-C 50 to secure it onto a solid, level surface.
Install with Bypass Valve
Allow sufficient access for maintenance (3 ft clearance above and 1 ft around the unit) and all plumbing and electrical hookups.
Use the four (4) mounting holes provided in the base of the UV-C 50 to secure it onto a solid, level surface.

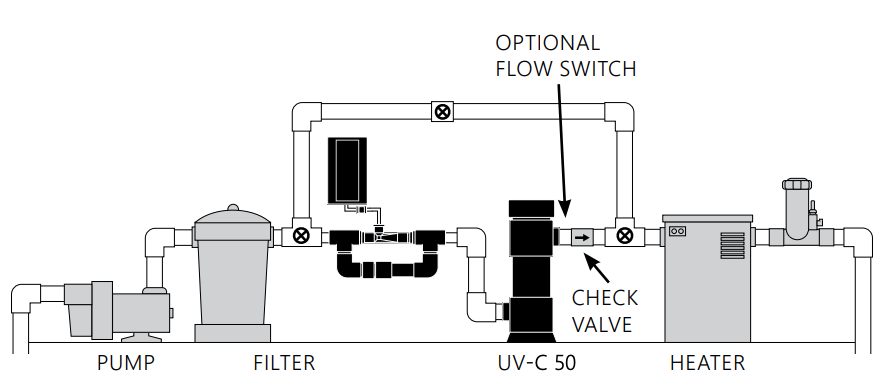

Install with Bypass Valve and Ozone
Allow sufficient access for maintenance (3 ft clearance above and 1 ft around the unit) and all plumbing and electrical hookups.
Use the four (4) mounting holes provided in the base of the UV-C 50 to secure it onto a solid, level surface.
