LED STRIP REMOVAL/ REPLACEMENT

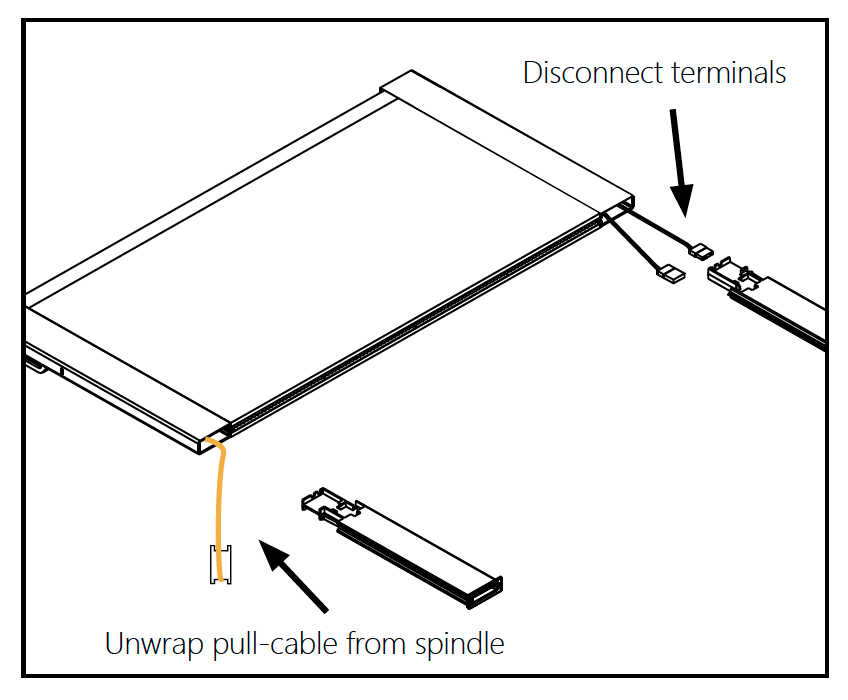

Disconnect

Use unlatching tool to remove both doors.

Disconnect wire terminals and unwrap pull-cable from spindle.

Let cables hang freely.

LED Strip Removal

Remove LED strip by gently pulling the wiring of the strip.

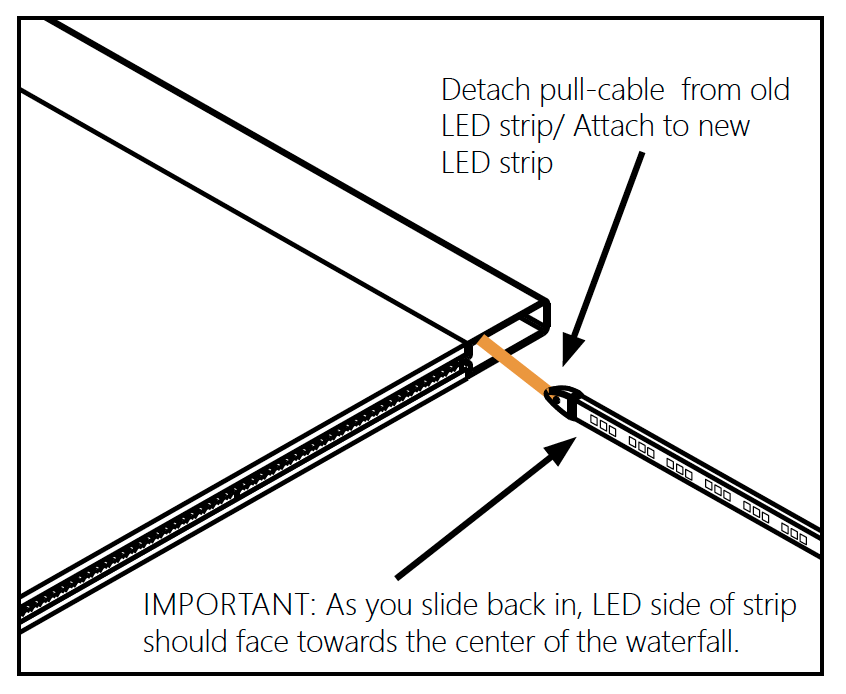

Once removed, detach pull-cable from old LED strip and tie onto the new one.

Start feeding the LED strip back into the side conduit while pulling the pull-cable from the other side.

Tip: If the LED strip gets caught or stuck during installation or removal, the door unlatching tool may be used to help guide or reposition around the corners. Insert door unlatching tool into the side conduit using the rounded end to push the LED strip off the corner while pulling from the opposite side.

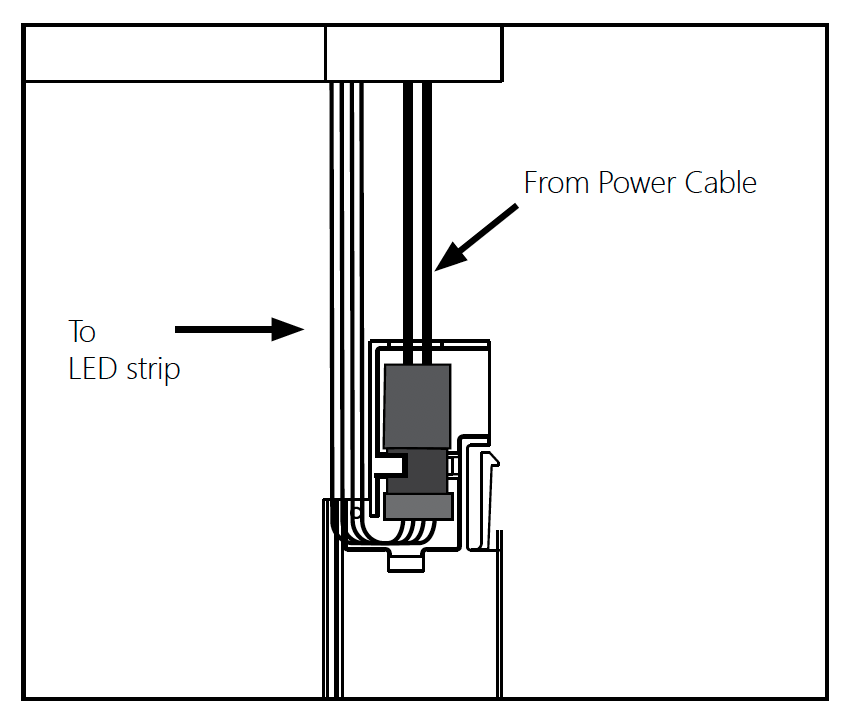

Reattach Wiring

Reattach wire terminals and place them into cuttable door as shown.

Re-wrap pull-cable around the spindle and place back into cuttable door.

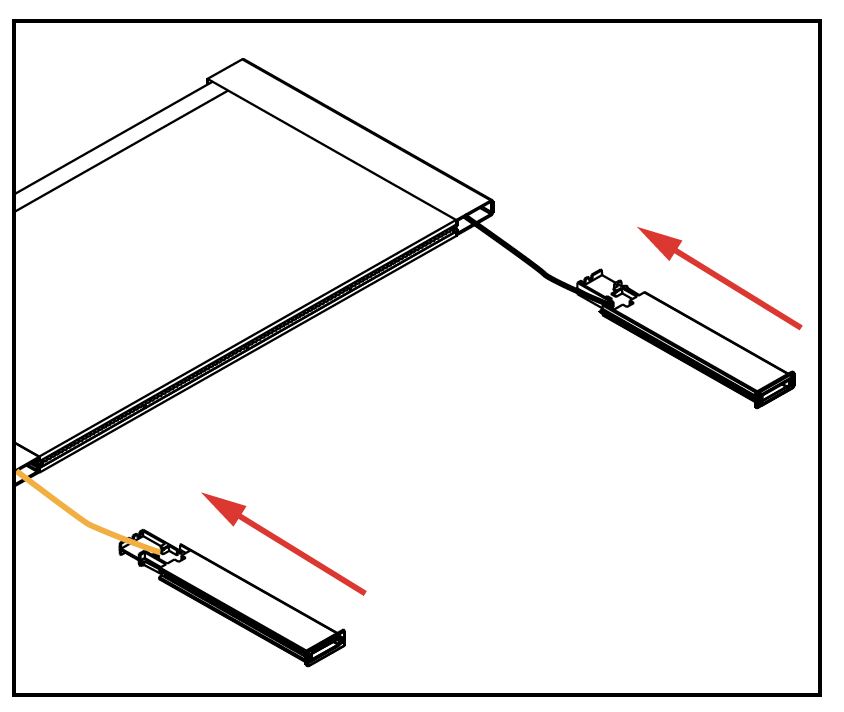

Reinstall Doors

Reinstall cuttable doors into waterfall.

Slowly push in until latches snap into place.

Door latch will “snap” into place once fully seated in the side conduit.
