Spa Master™ 2″ Gunite Jet (Gunite Body)

<b>2" Gunite Body</b><p><a class="button pool" style="background-color: #135a66; margin:3px;" title="CMP 2in Internals" href="https://www.c-m-p.com/pool-products/spa-master-spa-systems/2-inch-gunite-jets/insider-gunite-jets/">View Internals</a></p>
<b>2" Gunite Body</b><p><a class="button pool" style="background-color: #135a66; margin:3px;" title="CMP 2in Internals" href="https://www.c-m-p.com/pool-products/spa-master-spa-systems/2-inch-gunite-jets/insider-gunite-jets/">View Internals</a></p><b>2" Gunite Body</b><p><a class="button pool" style="background-color: #135a66; margin:3px;" title="CMP 2in Internals" href="https://www.c-m-p.com/pool-products/spa-master-spa-systems/2-inch-gunite-jets/insider-gunite-jets/">View Internals</a></p>
2" Gunite Body

View Internals
Get Details
2" Gunite Body

View Internals
CMP Part Number Full Description

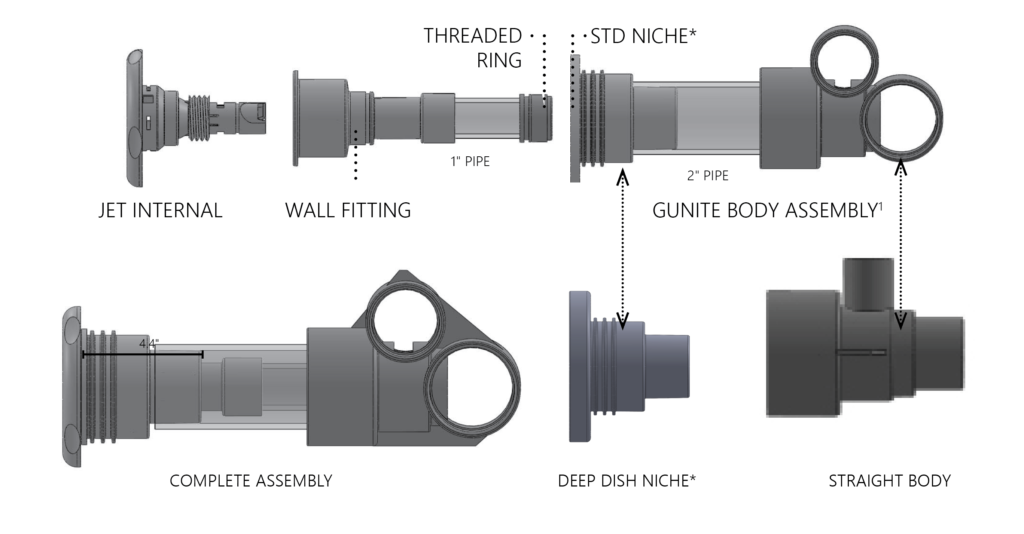

25580-290-000 Gunite Body, Wall Fitting, Threaded Ring; with Niche
25580-200-000 Gunite Body, Wall Fitting, Threaded Ring; without Niche











ORIFICE FLOW RATES
STYLE 1/4in GPM  3/8in GPM 1/2in GPM
DIRECTIONAL/VTX 7-10 13-17 22-26
SINGLE/DBL ROTO 8-11 13-17 22-26
MASSAGE 7-10 13-17 N/A

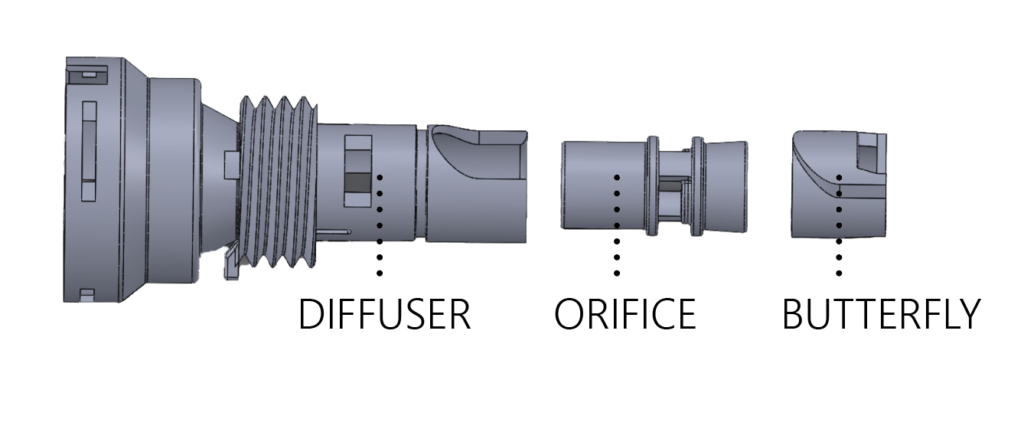

All 2” gunite jet internals are adjustable flow. For non-adjustable applications, remove the butterfly. This will convert the insert for non-adjustable installations.





NOTE: Distance between the end of the niche and the 1″ PVC pipe must be 4.4″

See More 2″ Gunite Jet Assembly
