GAS LINE

Important Information

The gas piping shall be installed underground to each fire feature. The piping shall be reduced to 1/2” NPT at each fire feature.

To eliminate unnecessary pressure drop, ensure the pipe length and amount of elbows used is minimized.

Corrugated flex hoses are known to cause a whistling sound. A whistle-free hose is recommended for gas supply to the burner.

Gas lines should be centered in the middle of the column.

You must have clear and easy access to the ON / OFF valve AFTER the appliance is installed and connected to the gas supply in order to safely turn off the burner.

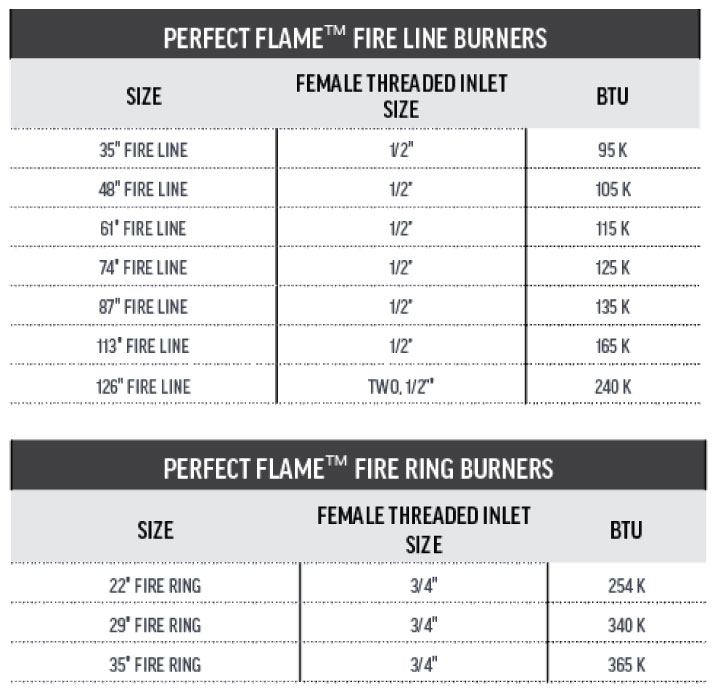

BTU Requirements

Follow BTU guidelines to ensure the correct flame and ignitor performance.

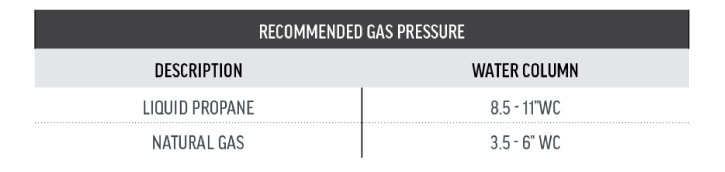

Gas Pressure Requirements

Check with your gas supplier to verify gas flows and pressures available at the location of your installation. In many cases, utility companies will install larger meters at no charge to accommodate larger flows.
