Control Center Installation

Important Notes

Screws and anchors are needed and are not included with Powerclean Salt.

NOTE: Do not enclose the Control Center inside any type of enclosure/box. The Control Center must be mounted on a noncombustible surface and at least 10 feet from the inside walls of a pool to prevent any possibility of the unit coming in contact with water.

Immediately replace the Control Center cord if damaged.

Confirm Mounting Location

Using the end of the cell cord as a guide, locate a suitable place to mount the control center.

The control center must be mounted on a non-combustible surface.

Mounting the Powerclean Salt Ultra control

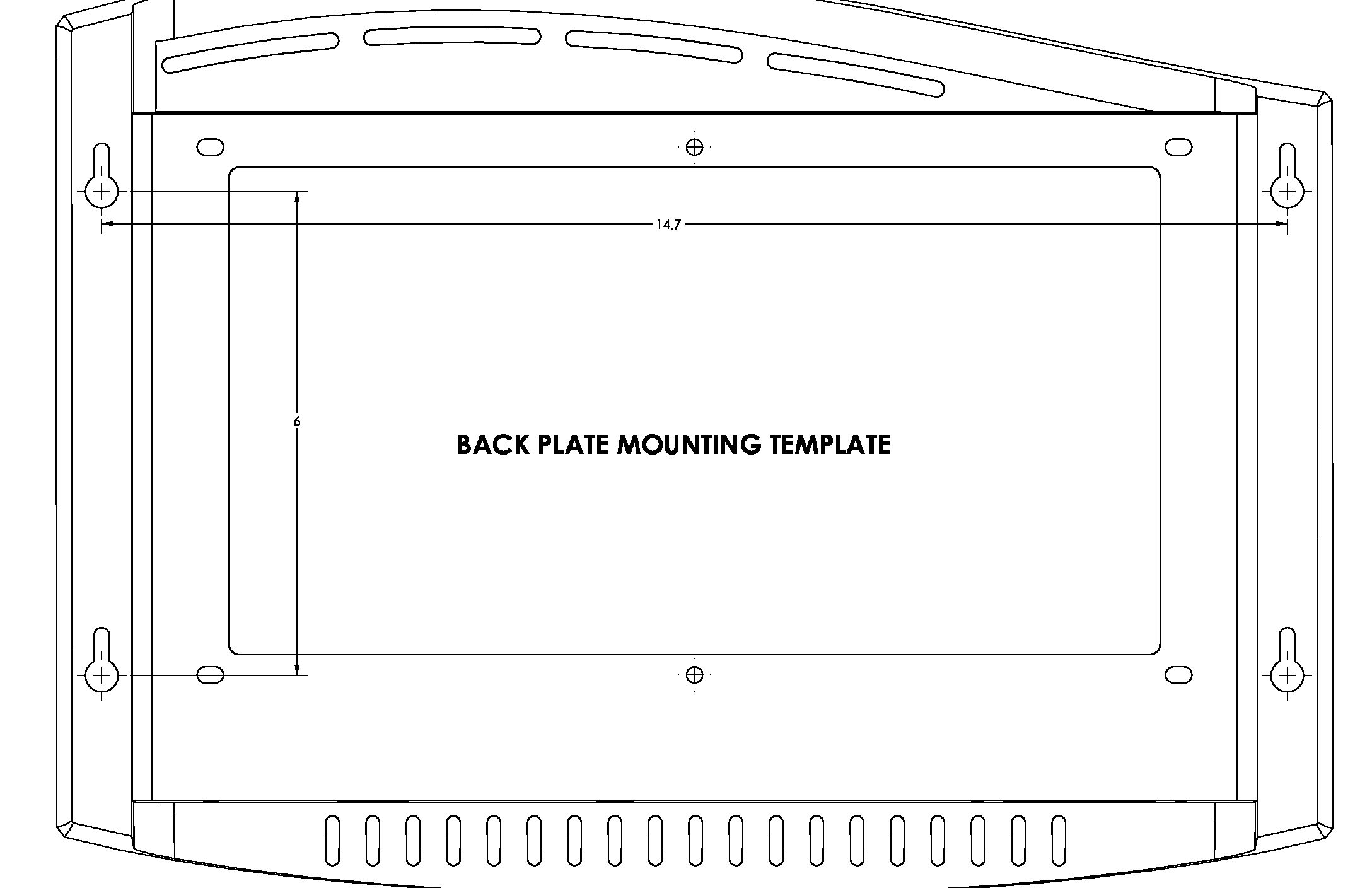

The wall mounting bracket should be fastened to the wall at a height comfortable for operation.

Make sure that the bracket is fastened directly onto concrete with the proper anchoring device or into a stud in a noncombustible wall surface.

Mount the bracket by installing the one screw, and then leveling the bracket. Next, install the other screw, making sure that the mounting bracket is level and horizontal.

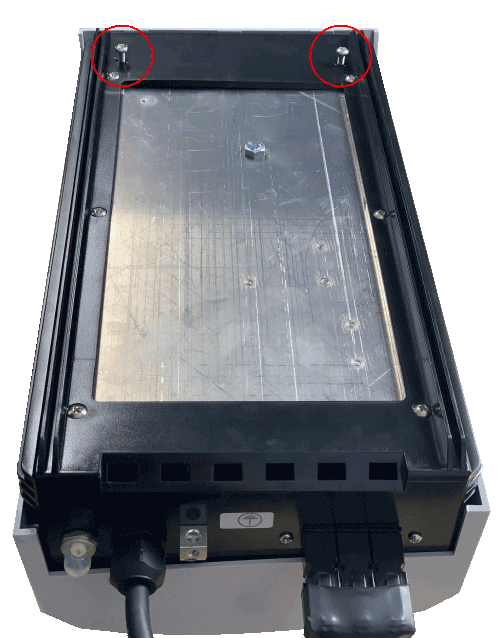

There are two mounting bolts installed at the top back of the control unit. Place the head of the pins in the keyhole slots on the wall bracket, and allow the unit to hang freely.

Mounting the Powerclean Salt control

The wall mounting bracket should be fastened to the wall at a height comfortable for operation.

Make sure that the bracket is fastened directly onto concrete with the proper anchoring device or into a stud.

Mount the bracket by installing the one screw, and then leveling the bracket. Next, install the other screw, making sure that the mounting bracket is level and horizontal.

There are two mounting bolts installed at the top back of the control unit. Place the head of the pins in the keyhole slots on the wall bracket, and allow the unit to hang freely.
